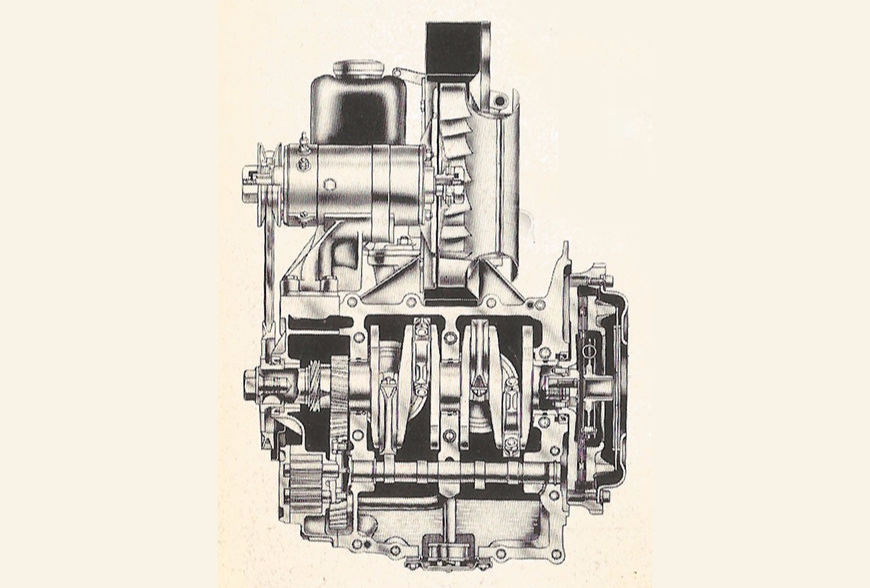

The Porsche 912 has the 102 hp. flat 4-cylinder engine witch has earned a great reputation for durability. The hand-assembled aluminium alloy engine is air-cooled with heat-dissipating fins on cylinders. Blast of air from the large blower passes over the oil-cooler, lowering the temperature of oil before it reaches bearings. Automatic bypass valve prevents dry starts by sending oil directly to lubrication points, without going through cooler, until operating pressure is reached.
Engine
Type
Displacement
Stroke / Bore
Engine Dry Weight
Charging System
Fuel Supply
Fuel Intake System
Battery Rating
Ignition
Crankshaft
Compression
Lubrication System
Oil Capacity
Horsepower
Torque
Redline
Milage
Flat-4 Pushrod
1,582cc
74.0mm x 82.5mm
287 lbs. / 130kg
1965-67: 300w Generator
1968-69: 420w Generator
Mechanical Pump
2 Solex 40 PII-4 Dual-Throat Carburetors
45 Ah
Bosch Coil
Forged
9.3:1
Pressure System w/ By-Pass Oil Filter
4.25 Quarts
102 SAE / 90 DIN @ 5,800 RPM
120 SAE / 90 DIN @ 3500 RPM
6,100 RPM
27.6 MPG Average - 11.7 km/l
Flat-4 Pushrod
1,971cc
71.0mm x 94.0mm
342 lbs. / 155kg
980w Alternator
Electric Pump
Bosch L-Jetronic Air-Flow Fuel Injection
44 Ah
Capacitive Discharge
Forged
7.6:1
Pressure System w/ Full-Flow Oil Filter
3.7 Quarts
86 SAE @ 4,900 RPM
98 SAE @ 4,000 RPM
5,600 RPM
32 MPG Highway - 13.6 km/l
